IV-11B-0011

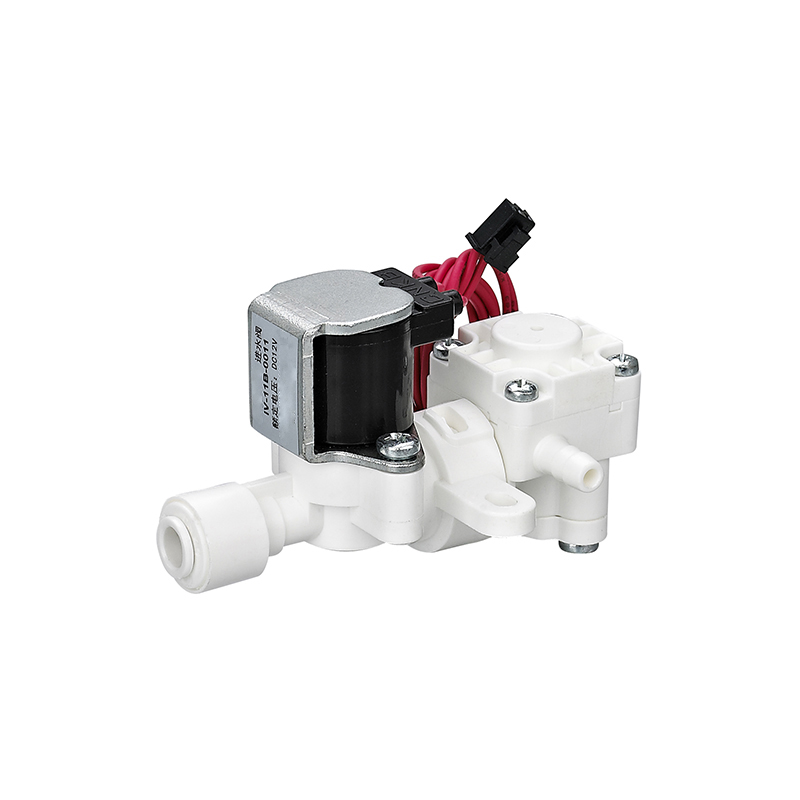

Product Display

■The brief：

IV-11B-0011

■ main technical details

Rated voltage	DC12V ( Optional DC24V)
Working voltage	DC12V±15% (Optional DC24V ±15% )

Item	Specification data	Remark
Inlet water pressure	0.2～0.8MPa
Outlet water pressure	0.05～0.1MPa Adjustable	The water outlet is connected to a 1.3mm analog nozzle
Flow rate	500-1000±20mL/min	Inlet water pressure 0.2MPa, The water outlet is connected to a ∅1.3mm analog nozzle

■Customer design and OEM service are provided
